The Zimmer Biomet VasoPress DVT Pump (Model VP500) is a lightweight, user-friendly intermittent pneumatic compression system engineered to prevent deep vein thrombosis (DVT) in surgical and immobile patients. The device works by producing cycles of compressed air delivered to specially designed garments that inflate around the patient's calf, thigh, or foot—stimulating blood circulation in the deep veins and helping prevent blood stasis and clot formation.

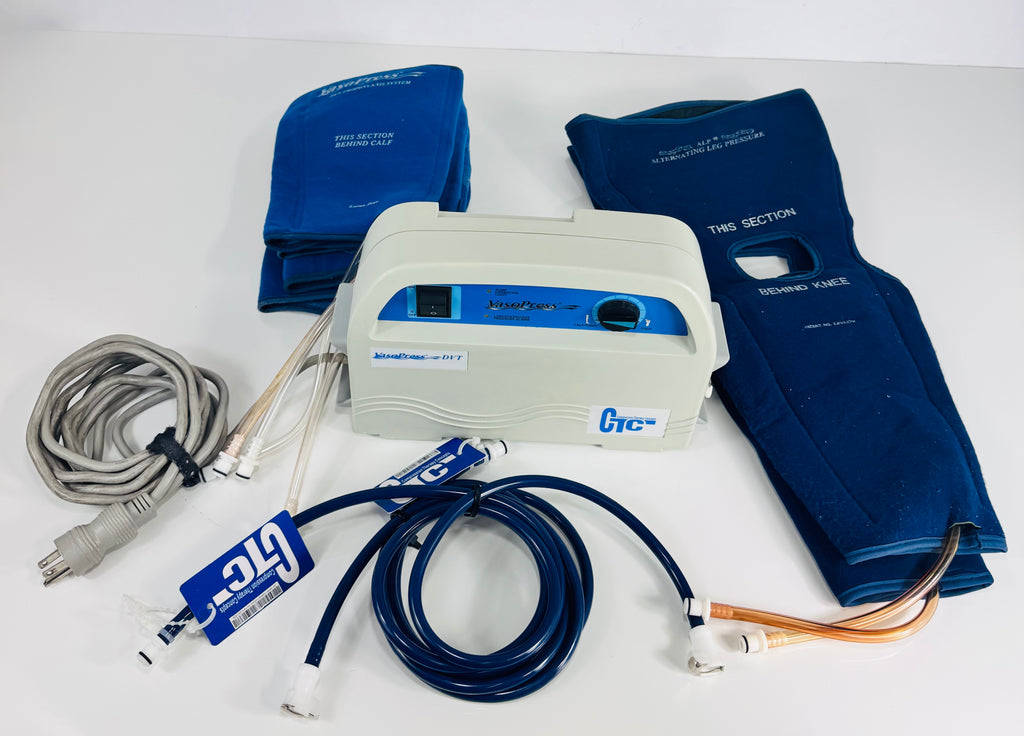

Includes:

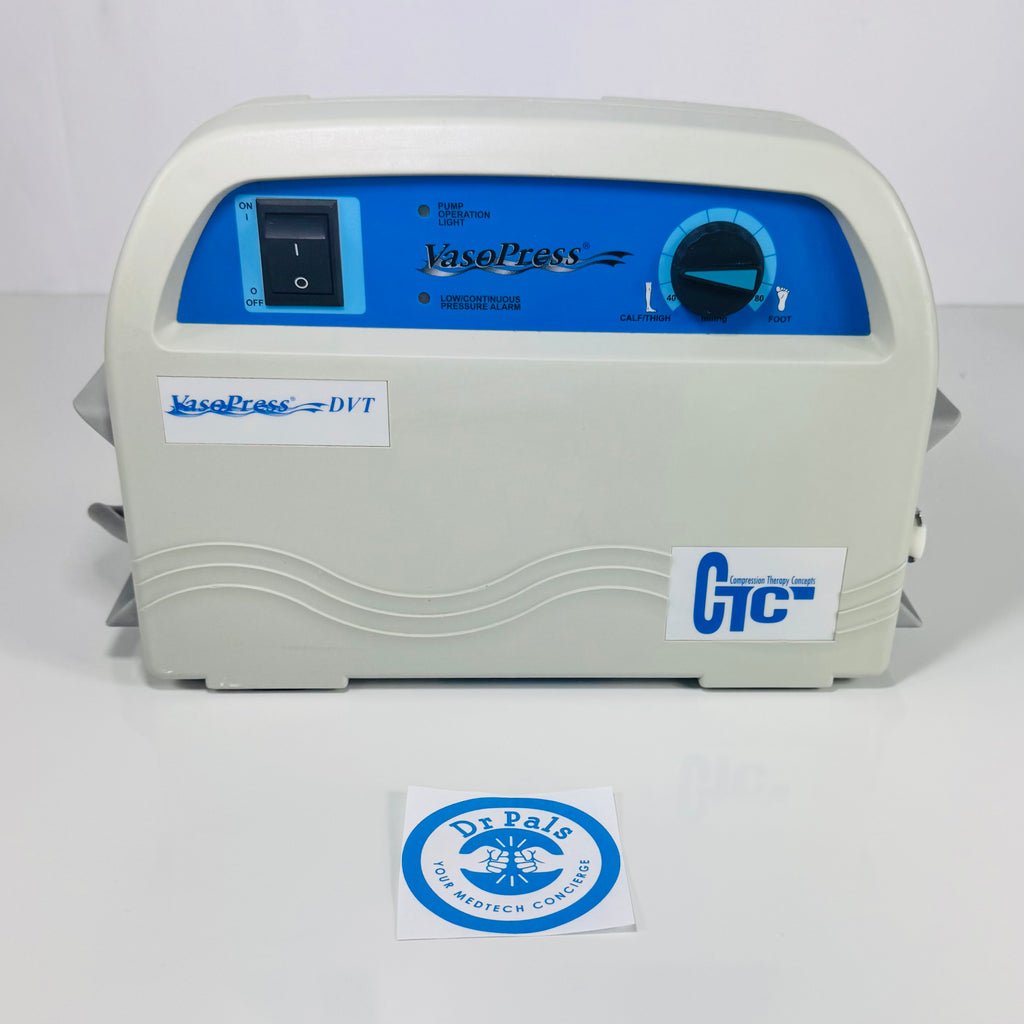

- 1 Vaso Press pump

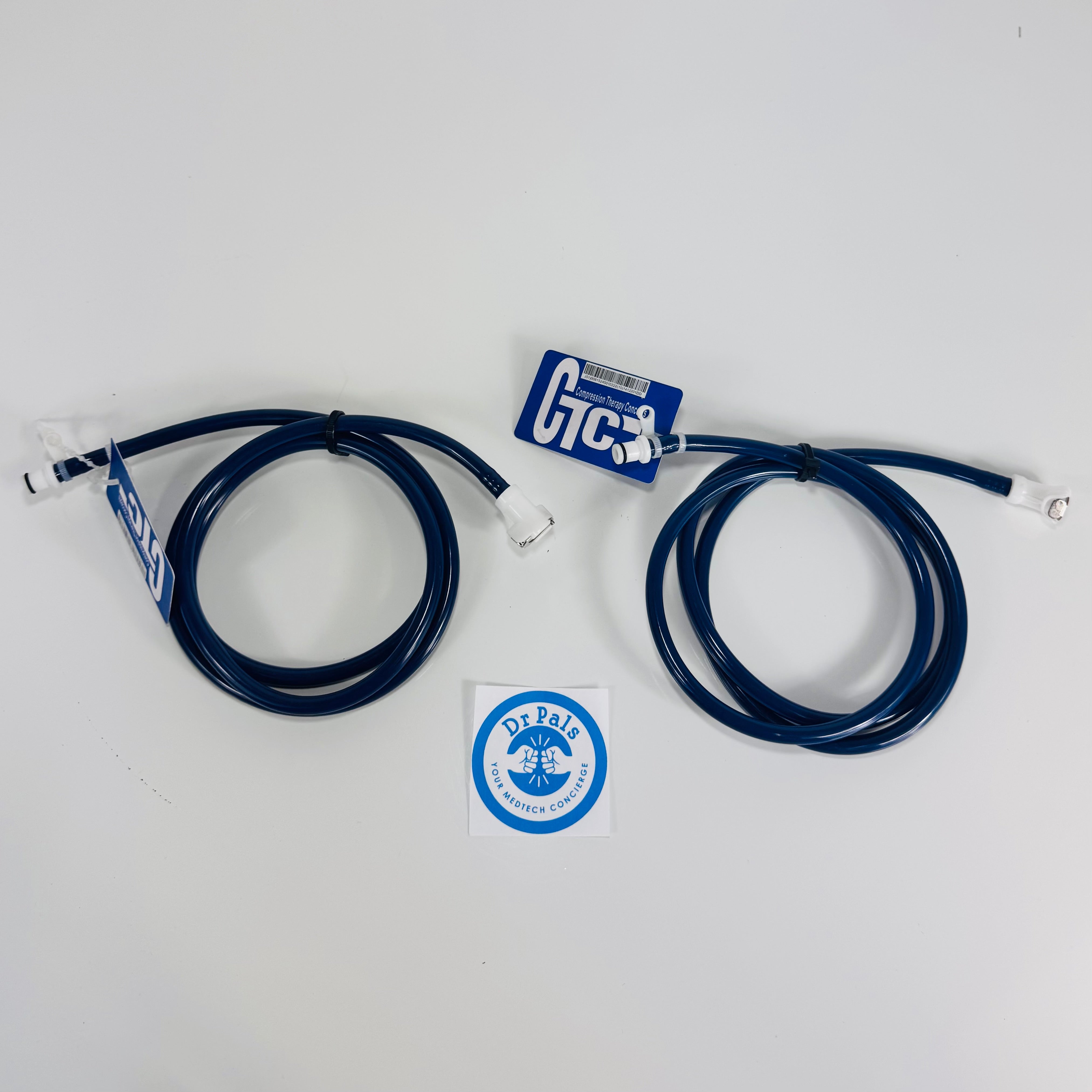

- 2 Connection Hoses

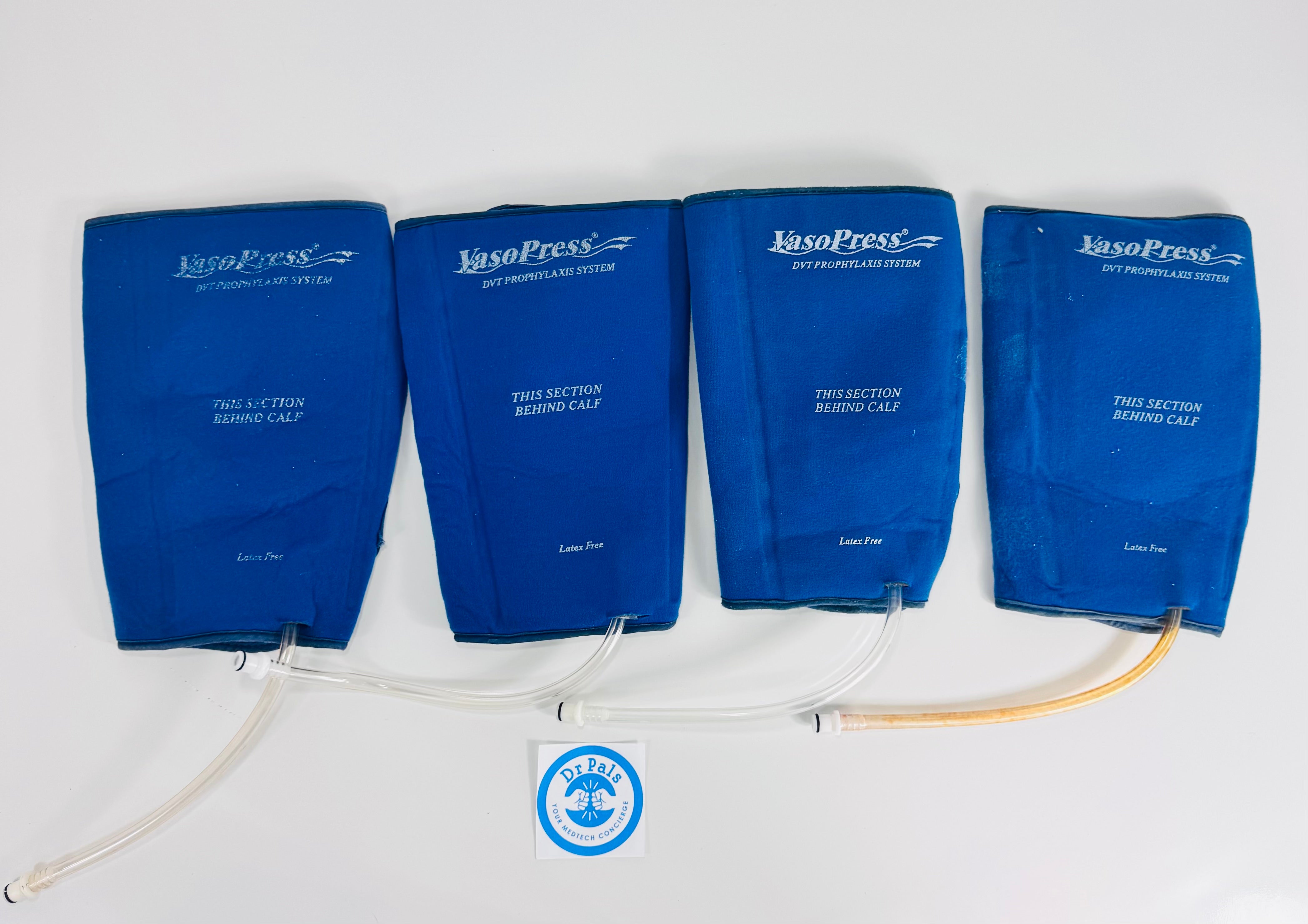

- 4 calf garments

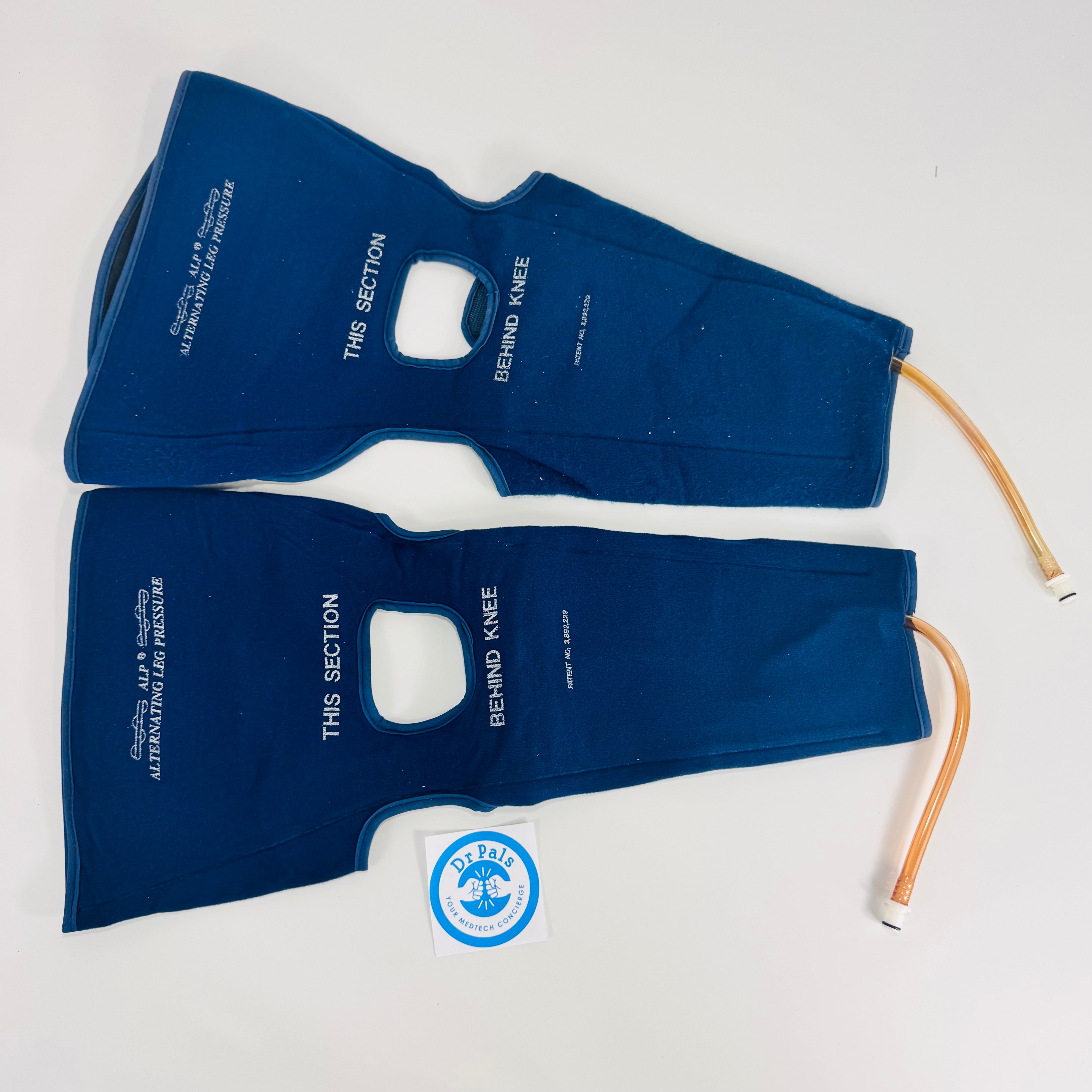

- 2 Knee Garments
Key Features:
- Pressure Range: Adjustable between 40–80mmHg to fit clinical needs.
- Cycle Timing: Delivers approximately 12 seconds inflation and 48 seconds deflation per 60-second cycle.
- Lightweight and Portable: Weighs about 4.85lbs (2.2kg), making it easy to move and handle; equipped with swing-out hooks for footboard attachment and a convenient carry handle.
- Safety: Equipped with both visual LED and audible beep alarm cues for device status and low battery warnings; troubleshooting codes are shown on display.
- Compliance Monitoring: Built-in timer tracks total days, hours, and minutes of therapy for compliance documentation.
- Power Options: Operates on standard AC power (100–240V, 50/60Hz) with optional battery pack, suitable for hospital or portable use.
- Garment Compatibility: Supports a wide variety of calf, thigh, and foot sleeves in multiple sizes and two material styles—brushed nylon/poly-foam or nylon/non-woven lining.
- Dimensions: Approximately 5.91" x 9.45" x 4.5".
- Quiet Operation: Designed to be non-distracting with breathable, comfortable garments for extended patient comfort.
- Intended Use Locations: Suitable for use throughout the hospital—OR, ICU, patient rooms, and any area requiring DVT prophylaxis.
- Easy Cleaning: Designed for efficient maintenance and cleaning as per medical standards.
- Single or Dual Leg Mode: Can operate for one or both limbs depending on clinical requirements.
