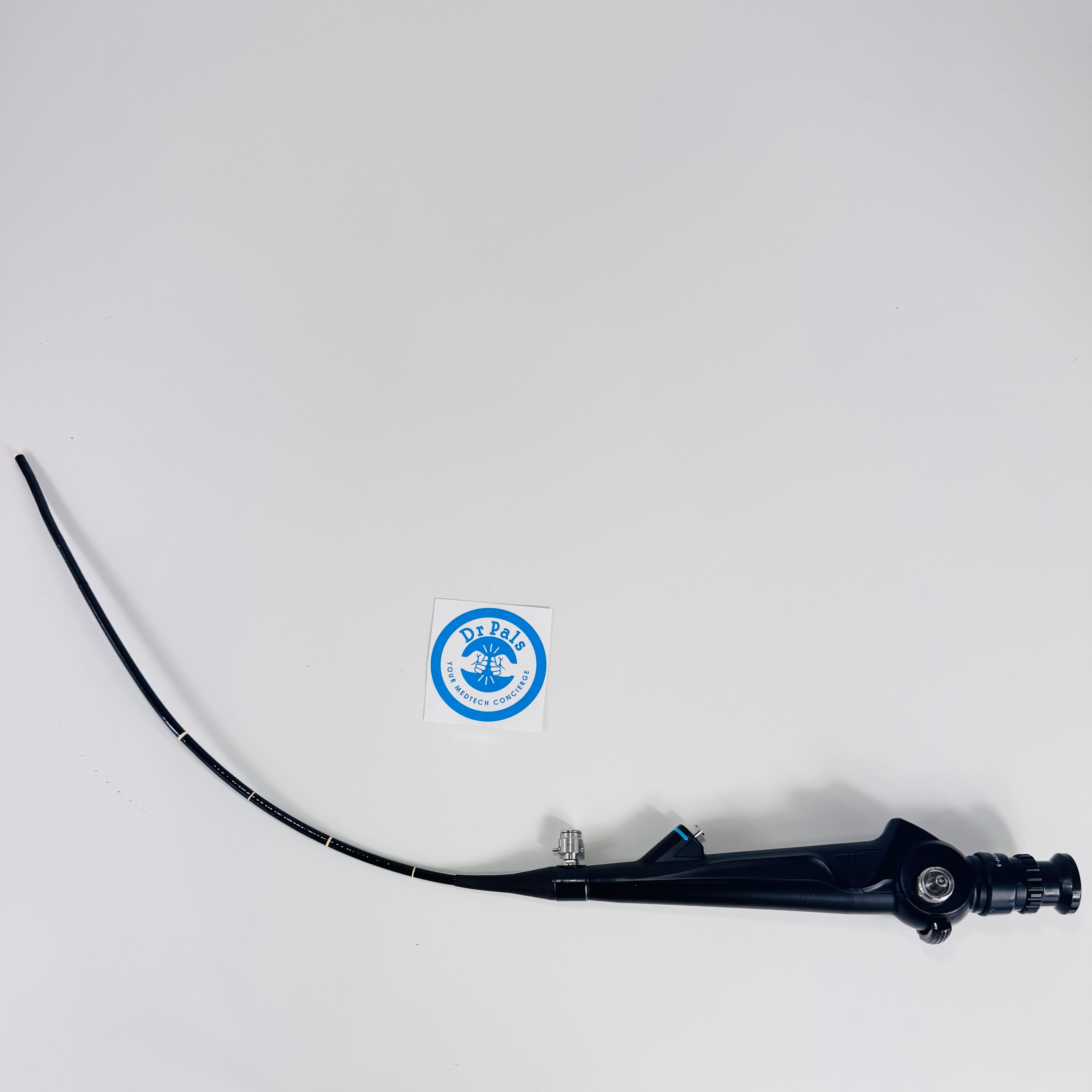

The Olympus CYF-5 is a flexible cystoscope designed for high-quality endoscopic examination and treatment of the bladder and ureter. Featuring an advanced optical system and ergonomic design, it provides improved image resolution, especially in peripheral views, and enhances patient comfort with its EvolutionTip tapered tip for smooth insertion. The CYF-5 supports flexible maneuverability with a wide angulation range, making it well-suited for detailed observation and intervention in urologic procedures.
Key Features:
- High-resolution optical system: Improved image quality with clear peripheral views
- Large angulation range: Up 210°, down 120° for thorough visualization around the ostium and bladder neck
- Wide field of view: 120°, enabling simultaneous observation of both ostia
- 2.4 mm instrument channel: Accommodates 6 Fr instruments and allows effective perfusion
- One-handed aspiration control: Keeps the field of view clear during procedures
- Ergonomic design with angulation lock: Enables stable single-handed operation

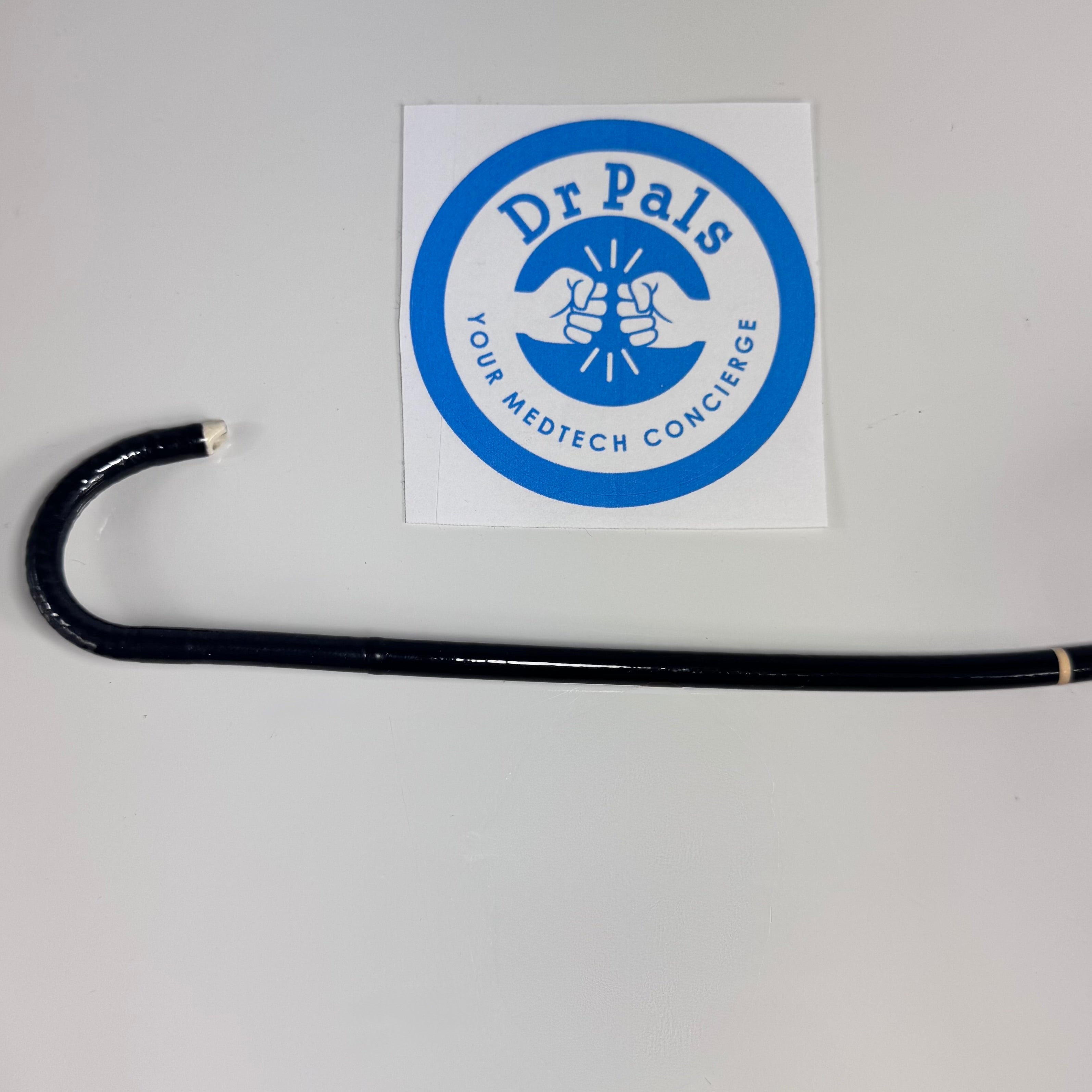

- EvolutionTip tapered tip: Facilitates smooth, comfortable insertion without compromising optics
- Portable and reliable: Compatible with tabletop or portable Olympus light sources
- Insertion tube outer diameter: 5.5 mm, suitable for patient comfort and access
- Depth of field: 3–50 mm to focus on structures at varying distances
