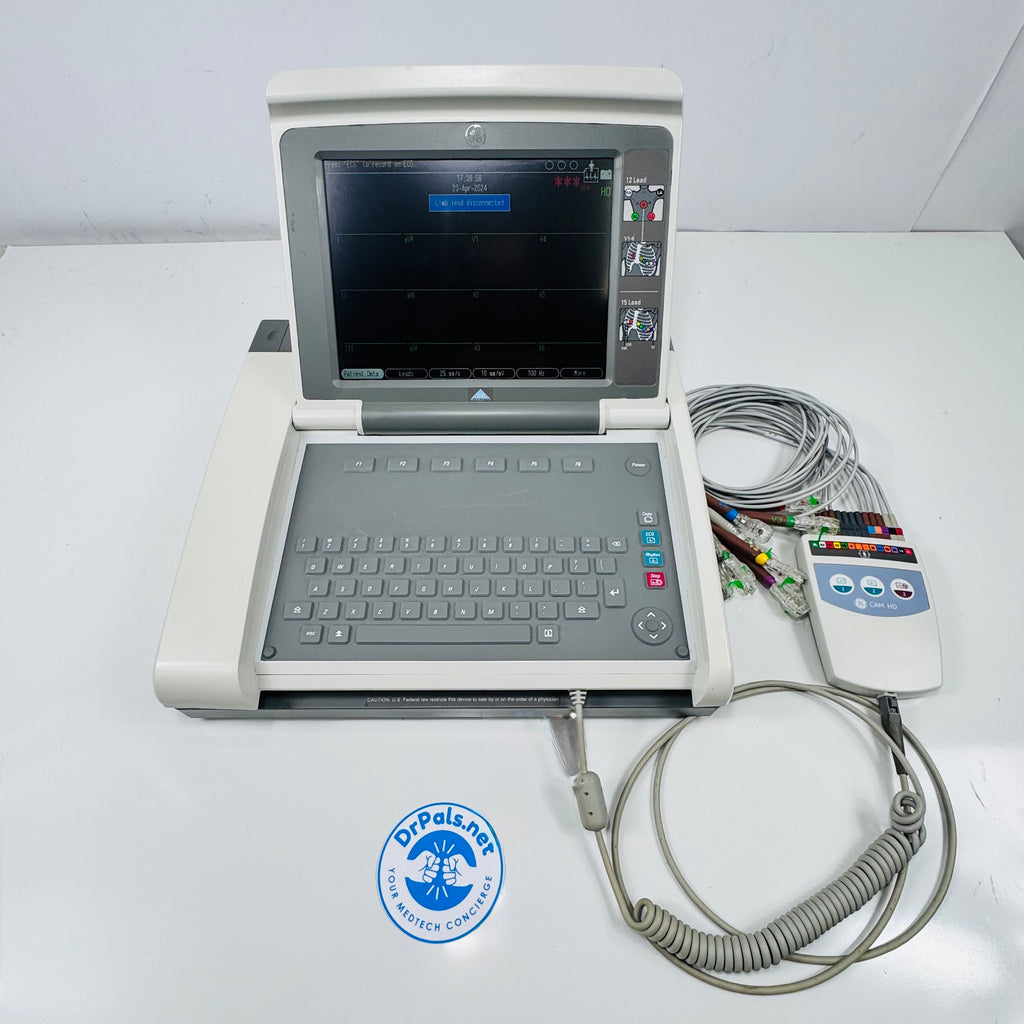

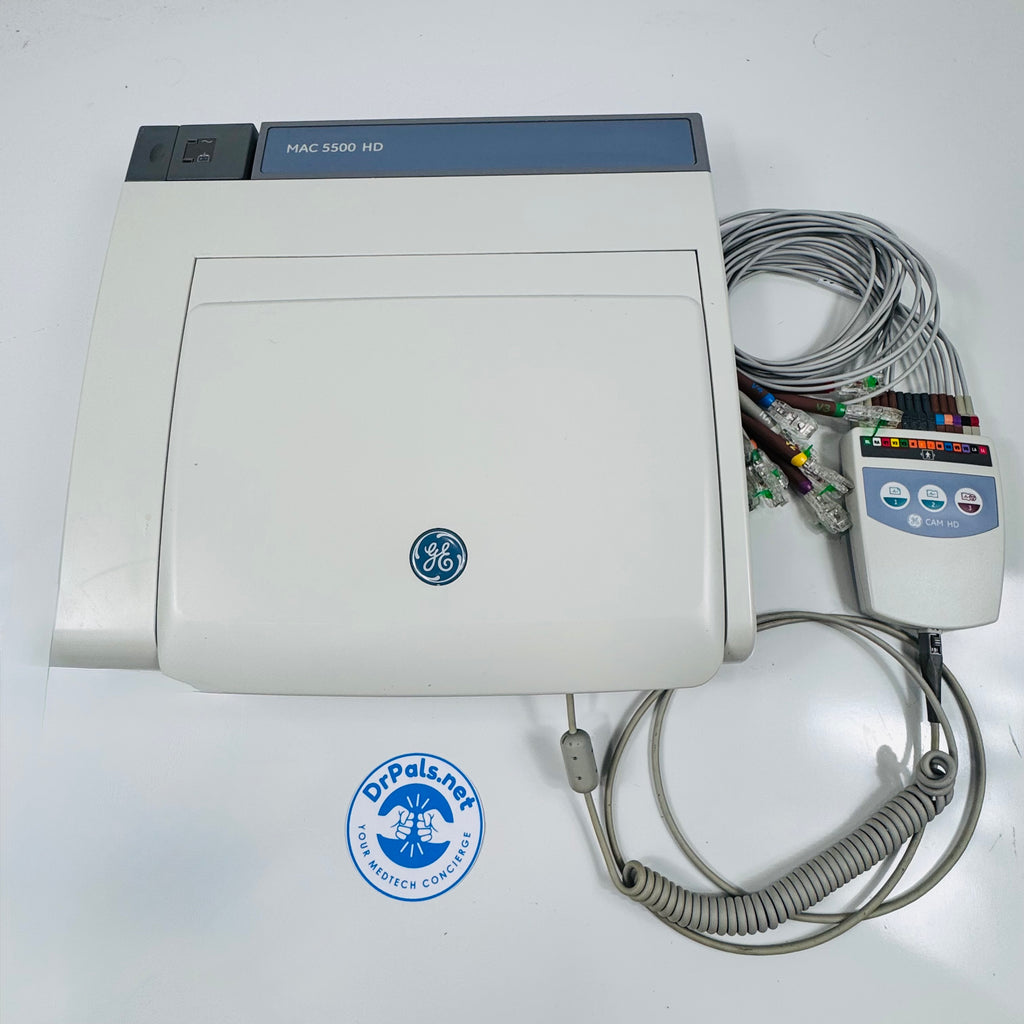

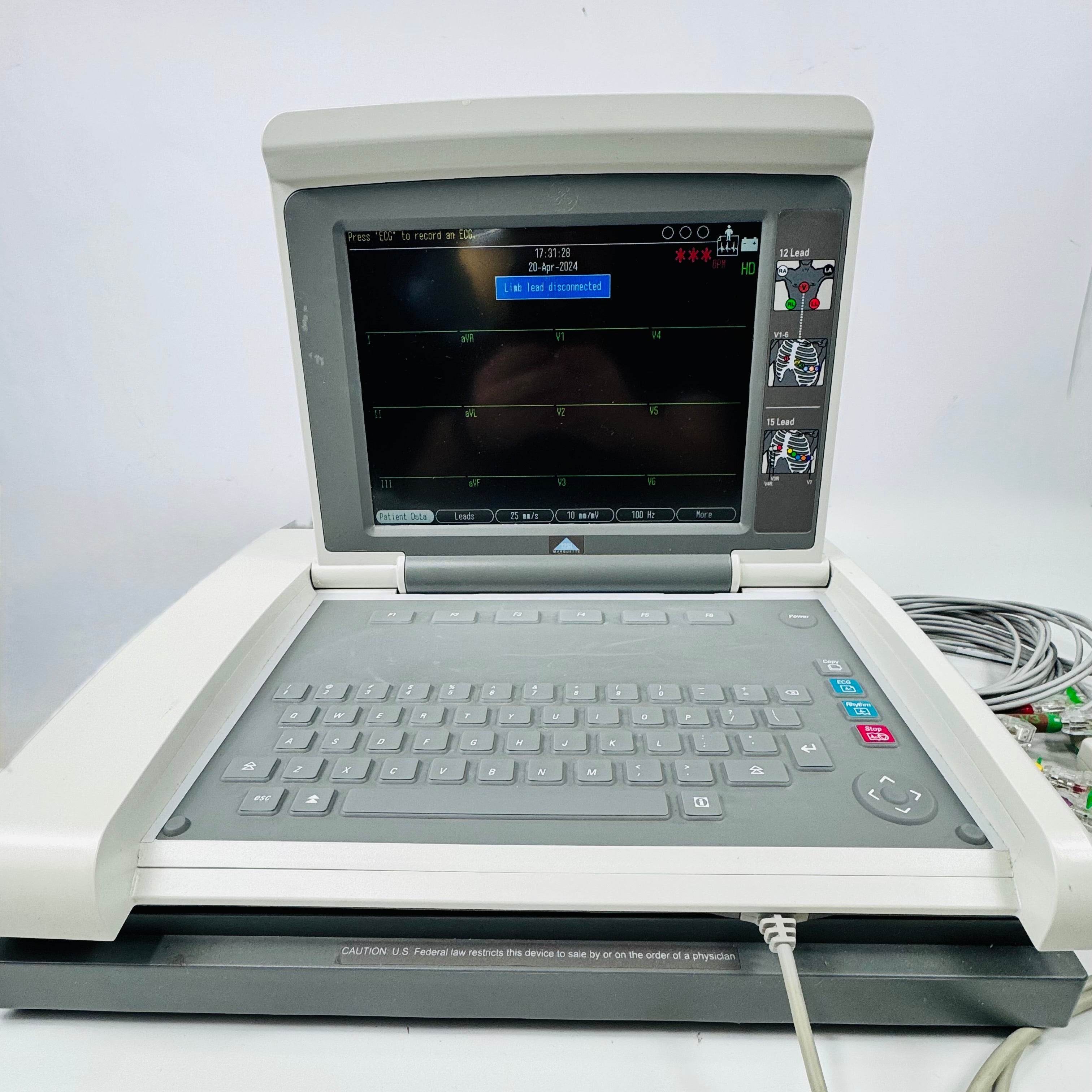

This compact unit (15 lbs, 3.7"H x 15"W x 13.75"D with screen closed) features a 10.4" color LCD touchscreen displaying up to 15 simultaneous leads with real-time waveform preview. Powered by AC (100-240V) or rechargeable NiMH battery (100 ECGs or 6 hours continuous use), it stores 200 ECGs internally plus unlimited via SD card.
Key Features
- Acquisition: High-definition CAM module with 16,000 sps/channel digital sampling, 500 Hz analysis rate, and pacemaker detection down to 0.2 ms/0.5 mV; supports 12SL algorithm with gender-specific adult/pediatric interpretation, ACS detection, QT analysis, and optional Hi-Res late potentials/P-wave averaging.
- Printing: Thermal dot array writer at 5/12.5/25/50 mm/s speeds, 3/6/12/15 traces, 2.5/5/10/20 mm/mV gain; A4/8.5x11" Z-fold thermal paper.
- Connectivity: Barcode scanner, HL7/EMR integration, orders/ADT download, configurable critical values, and serial ECG trending for enterprise workflow efficiency.
