Product Overview
The Olympus OTV-S7H-1D-L08E is a standard definition, single-chip urology camera head with a pendulum (L08) mount designed for rigid cystoscopy and ureteroscopy procedures. At just 45g, it's one of the lightest options in the OTV-S7 line — built to reduce hand fatigue during prolonged urology procedures. The pendulum design allows the camera to rotate freely, keeping the image oriented correctly regardless of scope position.
Key Specifications
- Resolution: Standard definition (SD), single-chip (1D)
- Camera type: Urology, pendulum mount (L08)
- Weight: 45g (camera head only, excluding cable)
- Cable: 3.3mm diameter, 4m length
- Sterilization: EO gas compatible; submersible for disinfection
- Output: NTSC
- Built-in moire filter
Compatible With
- Olympus OTV-S7, OTV-S190, CV-190, CV-180, CV-170 camera processor system
- Olympus rigid urology telescopes with standard eyepiece connection
Ideal For
- Urology departments running Olympus OTV-S7, OTV-S190, CV-190, CV-180, CV-170 systems needing a lightweight backup or replacement head
- Ambulatory surgical centers performing cystoscopy or ureteroscopy
- Facilities that prefer SD systems or are working within a tighter capital budget
Condition

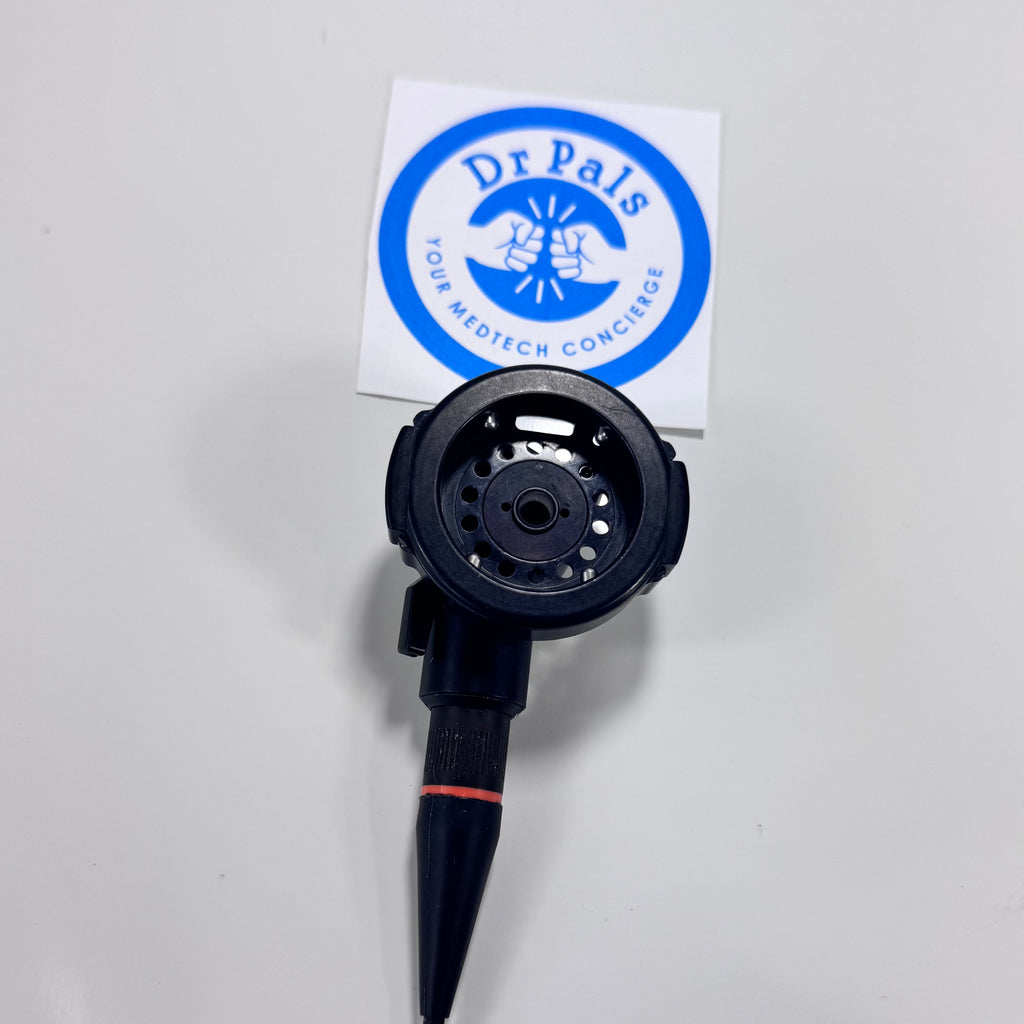

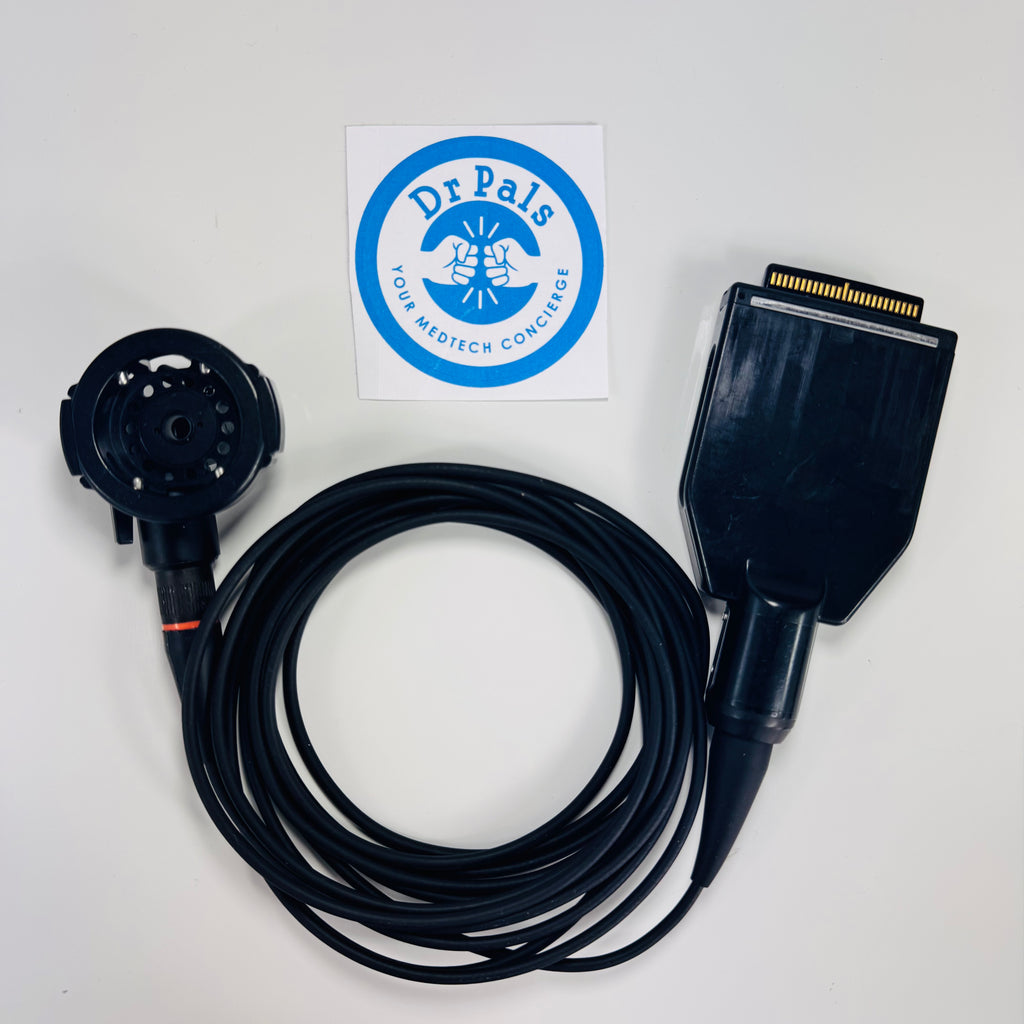

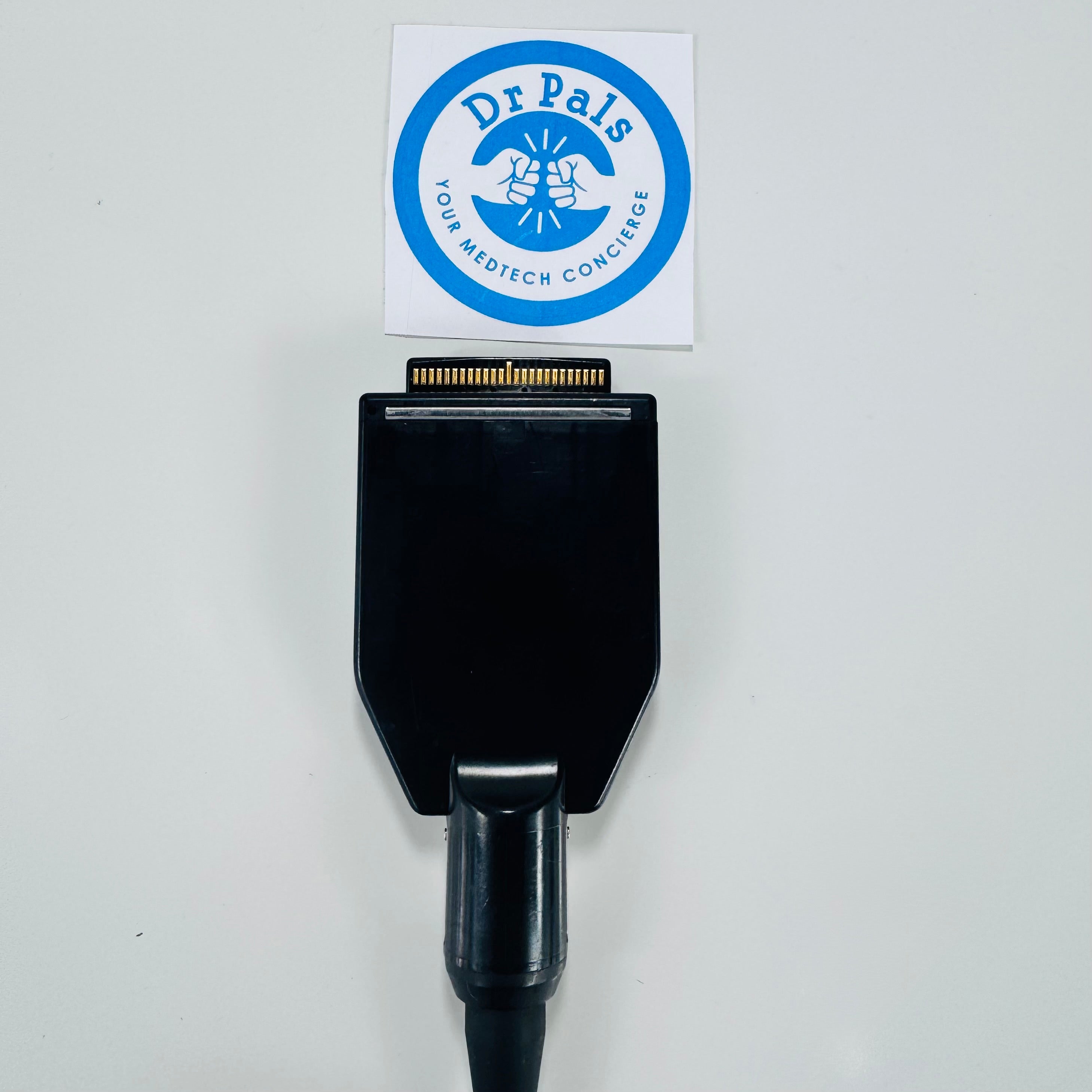

Used. Powered on and verified functional. Camera head only — no coupler or additional accessories included unless specifically noted. All items pictured are included.
Additional photos available on request. Contact us at customerservice@drpals.net or (323) 696-0093.
